V-Wheel eXtreme Dual - 10 Pack

V-Wheel eXtreme Dual - 10 Pack
ID: 8986878918

  • $69.99 USD

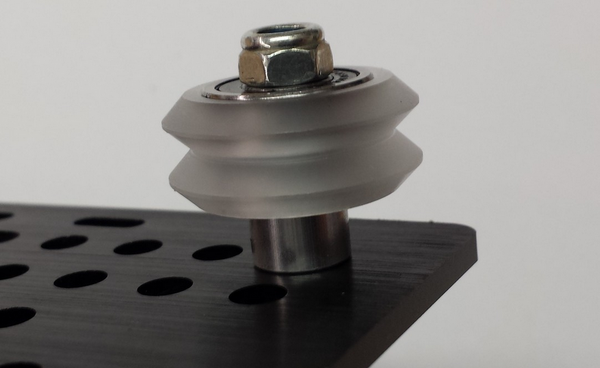

These solid Xtreme V's are made from very hard polycarbonate (clear) material which, due to its strong nature, will resist compression and wear and, in turn, leads to better over all precision and strength for your builds.

The Xtreme V-Wheels are designed to be used as a heavy duty alternative to the Delrin V-Wheels in applications such as CNC Routers/Mills where force and weight are introduced into the system. So, while the Delrin V-Wheels work great for most light load applications the eXtreme V-Wheels can be used for builds where heavier loads are required and less compression in the delrin is desired.

These have been tested at 25lbs. per wheel with no noticeable deflection. Many of these wheels could be added to a gantry to allow an even distribution of the load across them. Each wheel is carefully milled for consistent high precision and tolerance.

Included in each kit (you get 10 kits):
  • (1) eXtreme V-Wheel Dual
  • (2) Ball Bearings - 625 2RS
  • (2) 5mm Precision Shim
Part Details:
  • Material - Polycarbonate (clear)
  • Dimensions 24.39 OD x 15.974 +/- 0.026 ID x 10.23 'thick'
  • Rockwell Hardness M 75
  • Compressible Strength 86Mpa

Don't forget to add your Eccentric Spacers to your order! The eXtreme Dual V-Wheel is great for use with the V-Slot Linear Guide System.
