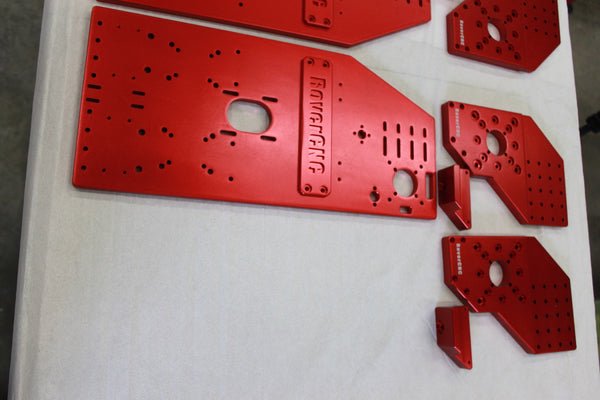

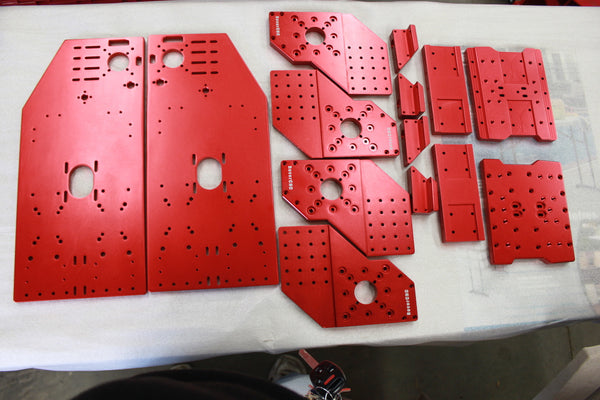

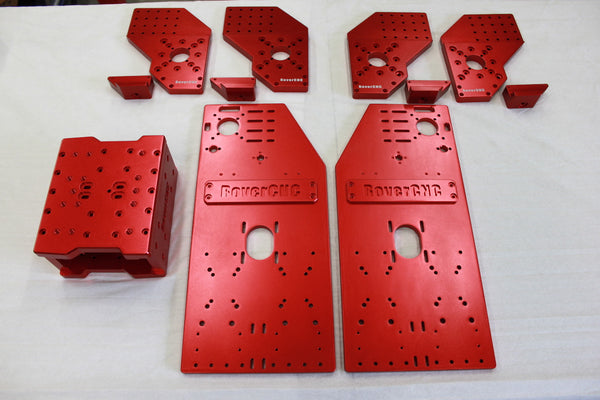

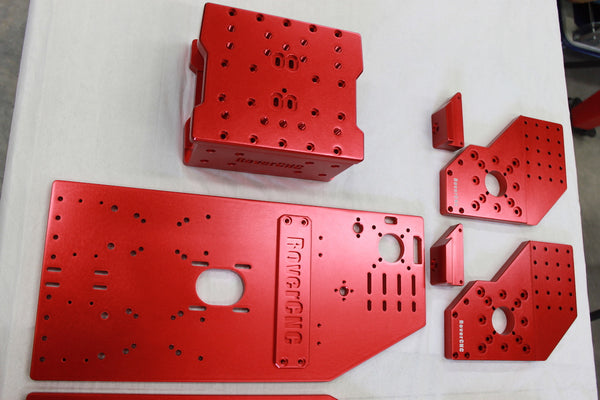

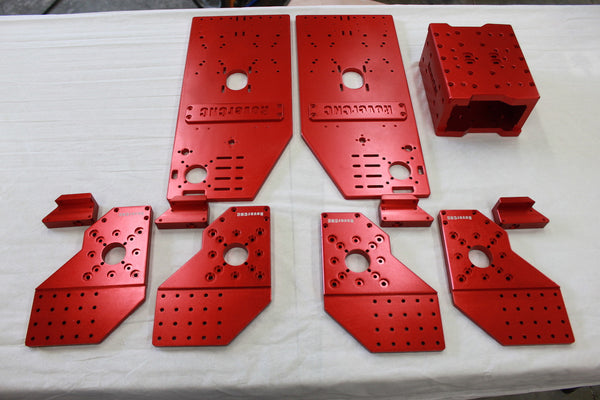

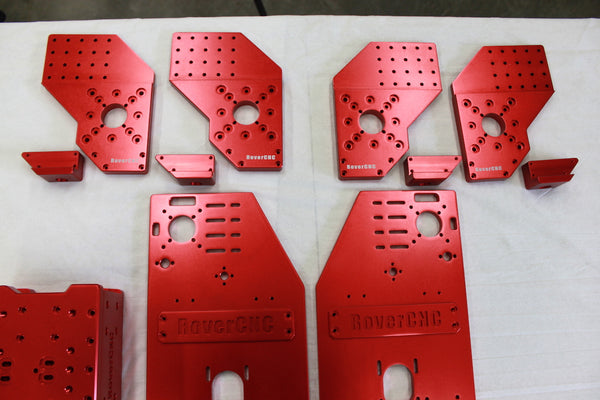

With this kit you get the enhanced kit to put together your next CNC platform. The kit includes CNC machined aluminum plates (made out of T6-6061) and anodized Red as shown in the pictures. All the plates are pre-drilled to accept 20, 40, 60 and 80 series aluminum extrusions with a 20mm hole pattern (where applicable). These plates are primarily made for the C-Beam extrusions that conform to the 40mm x 80mm standard.
This includes the following:

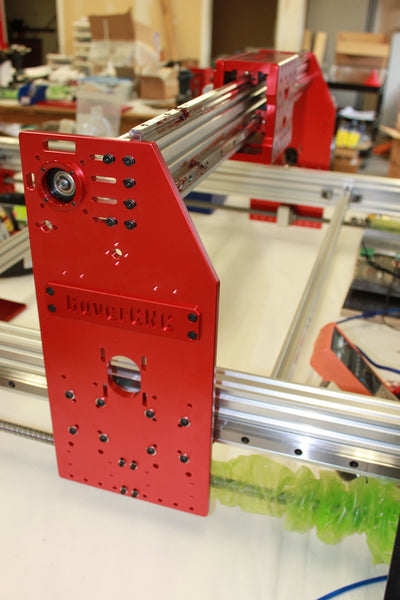

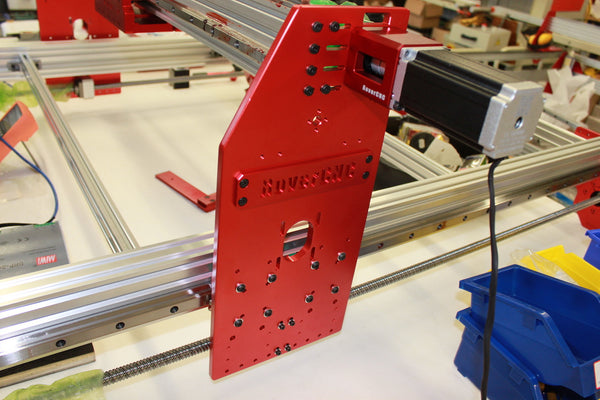

- 2pc Gantry Plates (10mm Thick Plates) - These Y-Axis plates can be driven using 20mm Linear Block Bearings and 16mm BallScrews or using OX CNC Belt Drive and OpenBuilds V-Wheels
- 4pc X-Axis Drive Plates - The X-Axis plates are designed to accept 15mm Linear Block Bearings and 16mm Ballscrews. They are carefully designed to conform around the C-Beam to create the perfect X-Axis drive mechanism

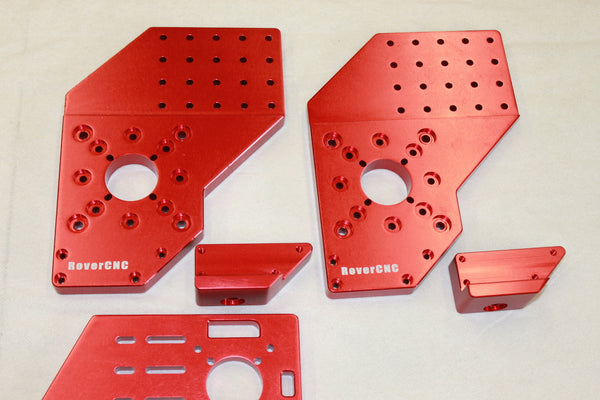

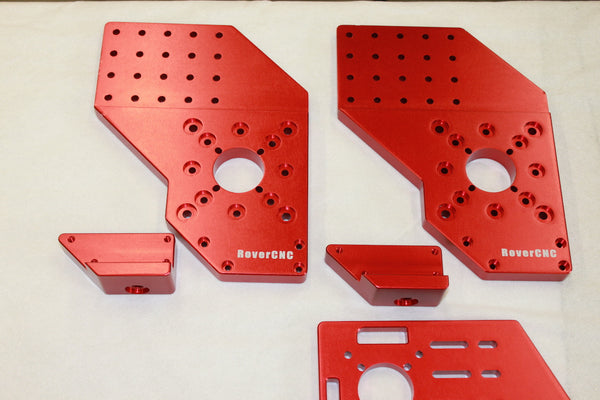

- 4pc Platform Legs - These legs are a perfect match to accept 16mm Ballscrew as well as NEMA23/34 Motors (or Motor Mounts) to build a perfect base for you platform

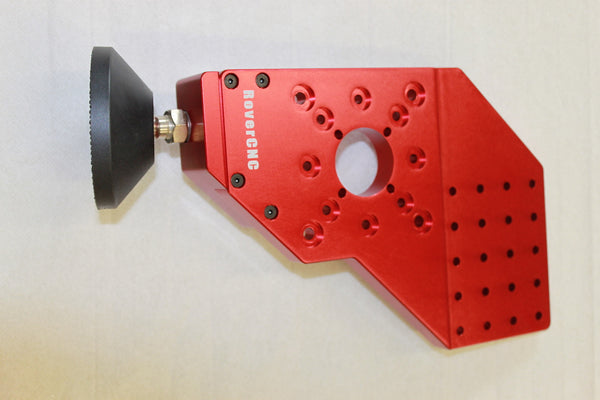

- 4pc Levelling Assembly - These are add-ons to the Platform Legs that allow you to mount Levels to the legs (levels need to support M8 threads), levels not included
