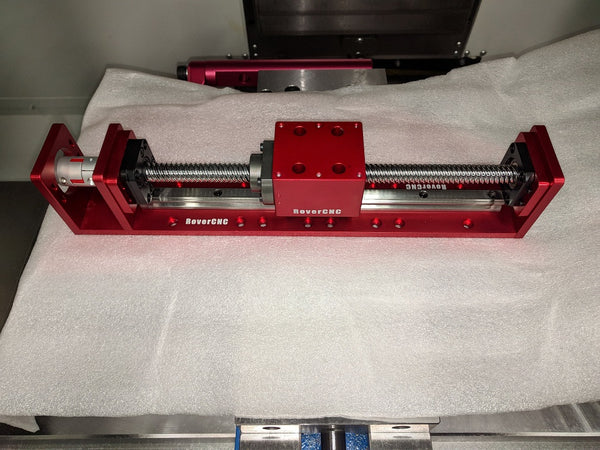

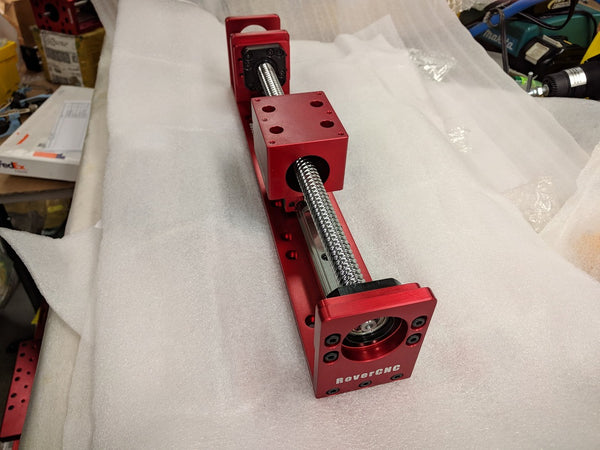

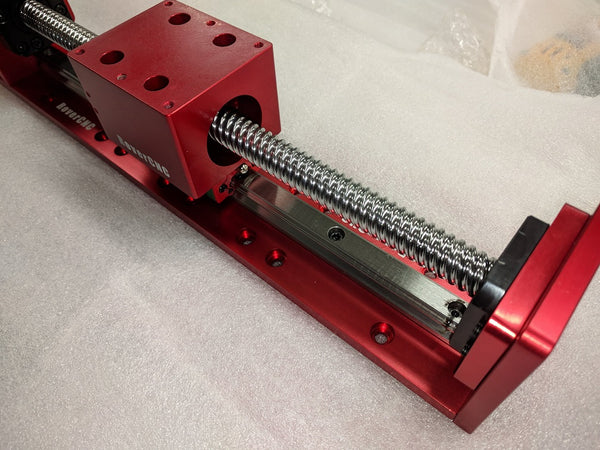

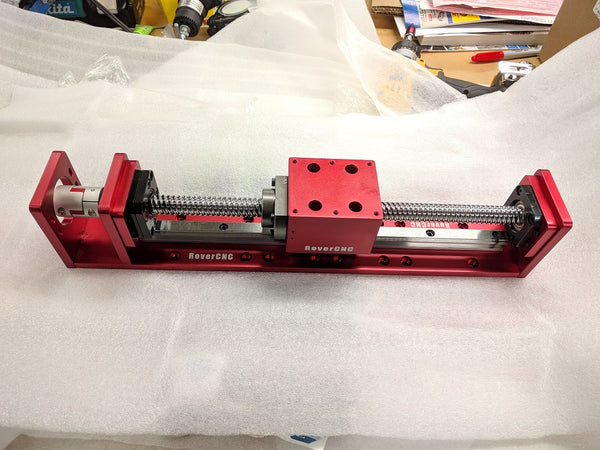

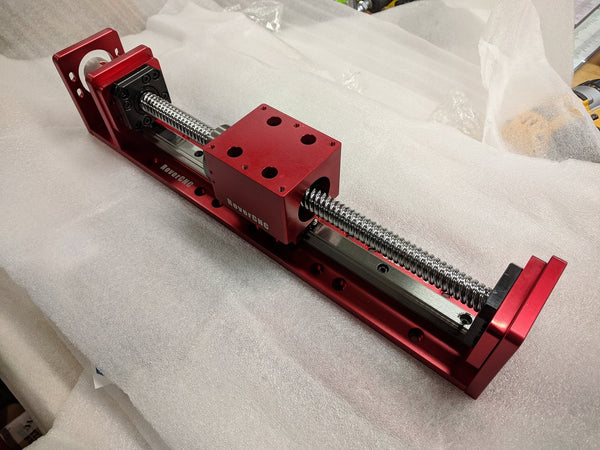

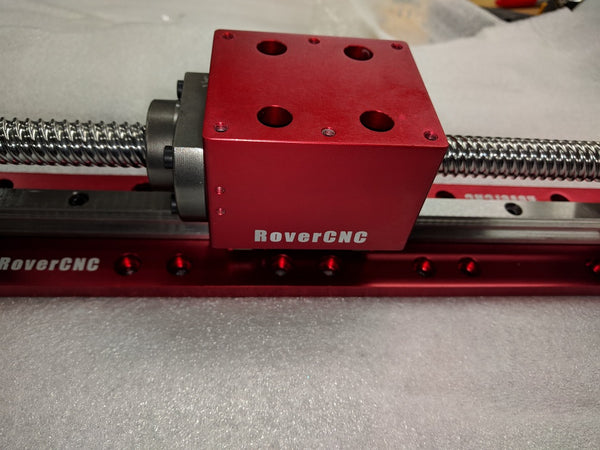

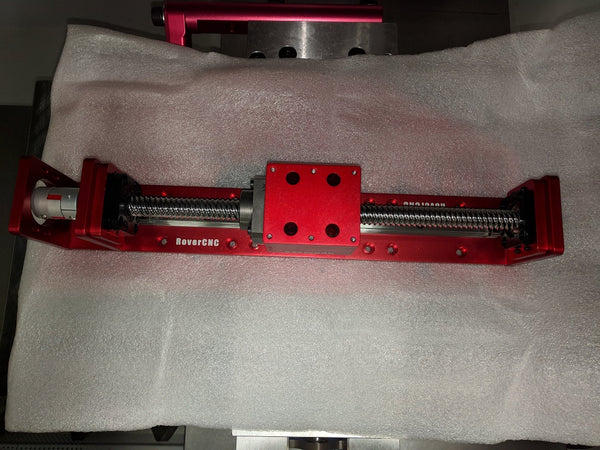

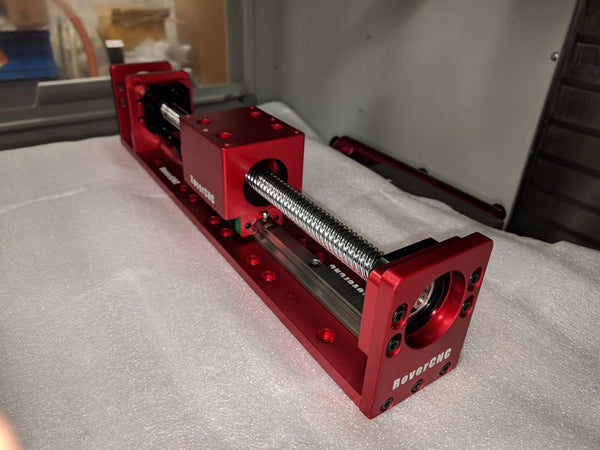

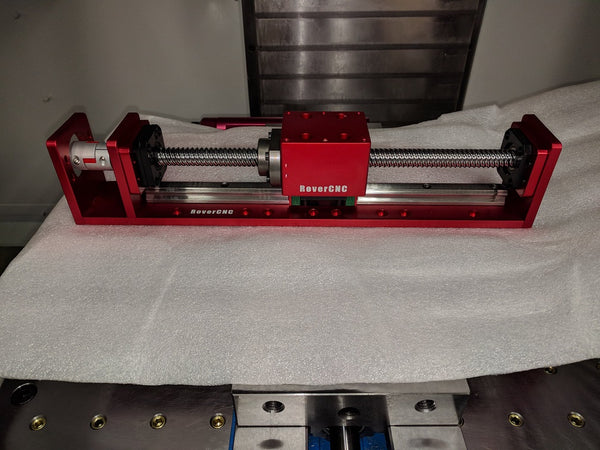

This is a low profile Z-Axis Assembly made from solid aluminum blocks! Using high quality linear block rails, and fast travel precision ball-screw (1616) making it perfect for your next CNC project such as mounting a plasma torch or spindle. The rail is a full-size 15mm linear rail and block to withstand load and vibration.
8.10" Inches of Stroke (Travel)
- Precision 1616 Ballscrew Drive (10mm Coupling Shaft)
- 15mm Linear Rail and block

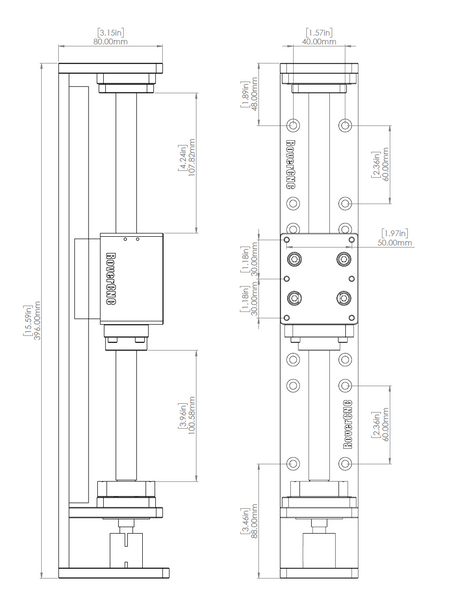

- Travel (Stroke) = 8.10"
- Standing Height (without Mount) = 80mm (3.15")
- Length = 396mm (15.59")
- 6 mounting holes are 50mm x 30mm apart

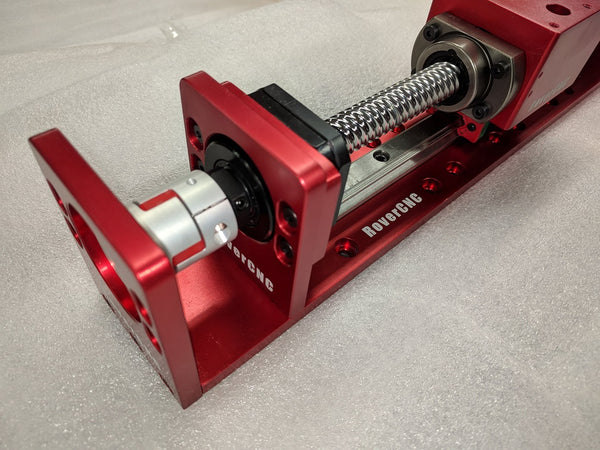

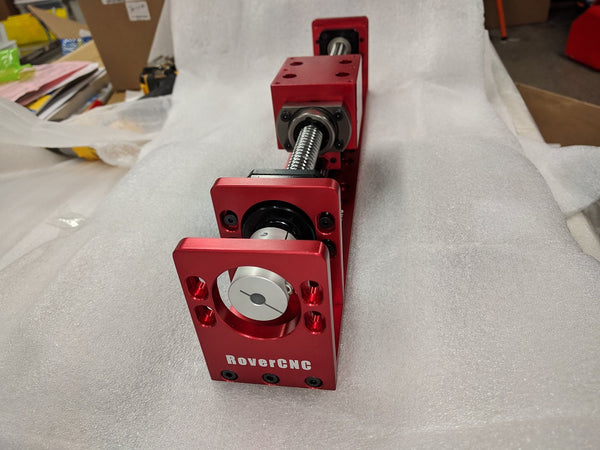

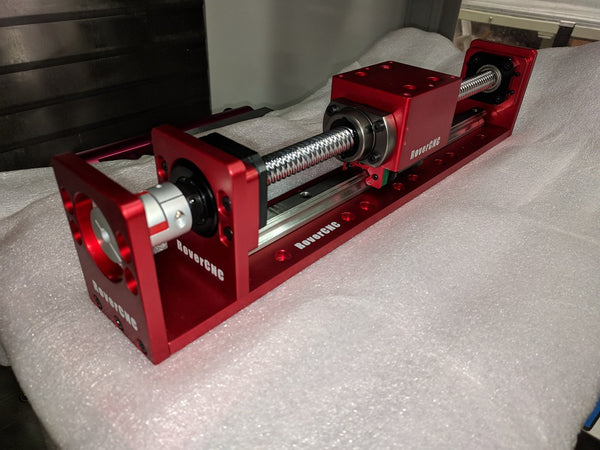

The z-axis assembly does not includes a coupling (shown in pictures) which can be purchased separately for a NEMA23 motor. The assembly also does not include the motor!
