NEMA34 Hybrid Stepper Motor 1700oz + Driver Kit

Regular price $199.25 USD

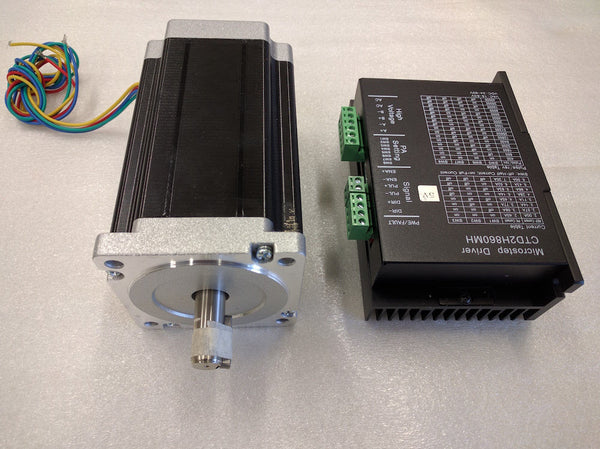

This package includes a perfect solution for your next project with a high torque 1700 oz-in Stepper Motor and high performance M860 Stepper Driver!

Whats included:
  • 1pc Hybrid Stepper Motor 1700oz
  • 1pc Stepper Motor Driver
Stepper Motor Specification:
  • Frame: NEMA34
  • Motor Length: 150mm
  • Shaft Length: 30mm
  • Shaft Diameter: 14.00mm
  • Current: 6A
  • Rated Voltage: 4V
  • Torque: 1699 oz-in
  • No. of Phases: 2
  • Step Angle: 1.8 Degrees (+/- 5%)
M860 Driver Specification:
  • Supply Voltage: From 24V DC to 50V DC
  • Output Current: From 1.5A to 6.0A
  • Self-adjustment technology, full to half current self-adjustment when motors from work to standstill via switching off SW4
  • Pure-sinusoidal current control technology
  • Pulse input frequency up to 200 KHz
  • TTL compatible and optically isolated input
  • Automatic half-current reduction as long as switching off SW4 when motors stop
  • 16 selectable resolutions in decimal and binary, up to 50,000 steps/rev
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR and CW/CCW modes
  • Short-voltage, over-voltage, over-current and short-circuit protection, protect the PC, motors, driver etc from being damaged
