NEMA23 Hybrid Stepper Motor 428oz (with Encoder) + Driver Kit

Regular price $189.00 USD

Shipping calculated at checkout.

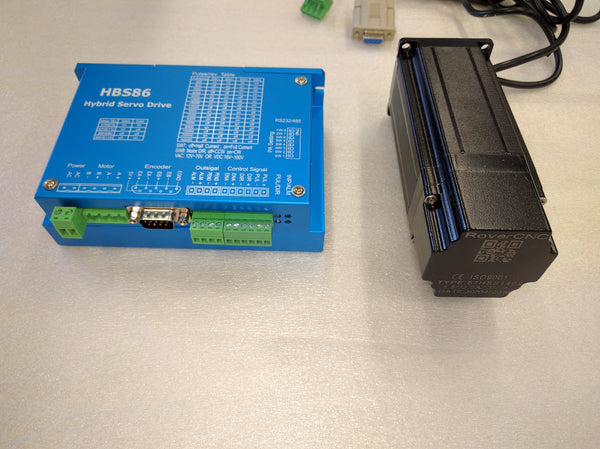

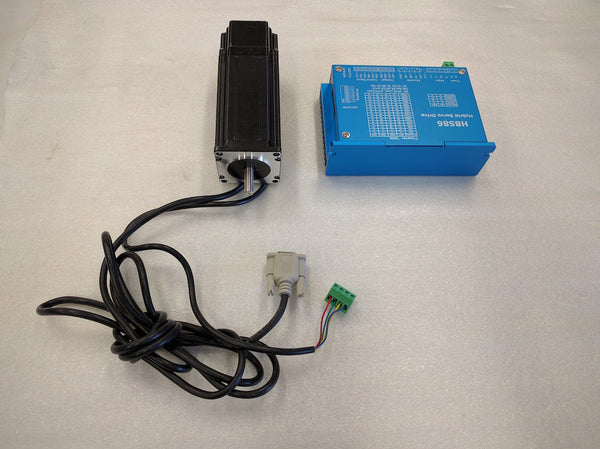

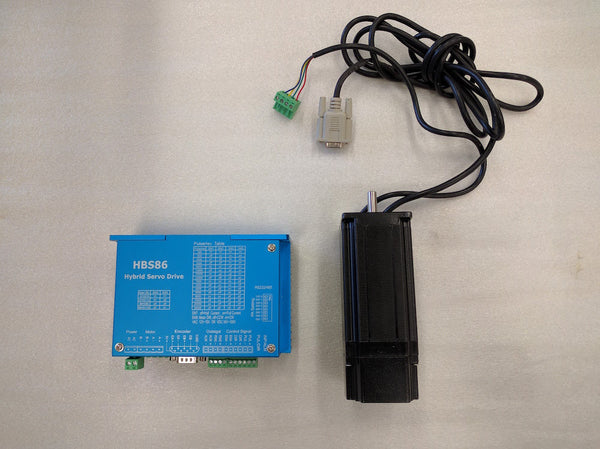

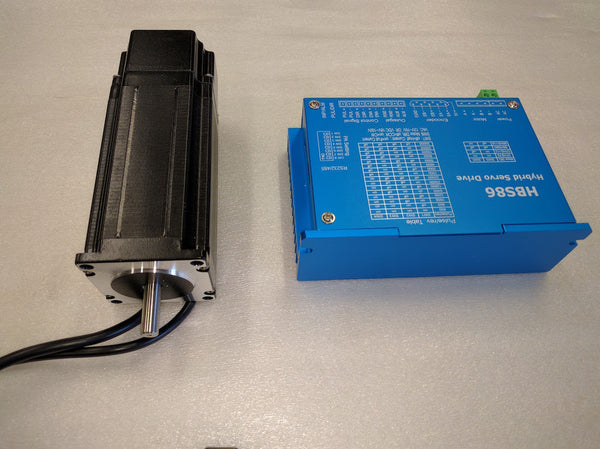

This package includes a perfect solution for your next project with a high torque 420 oz-in Stepper Motor with 2500 Line Encoder and high performance HBS86 Stepper Driver!

Whats included:
  • 1pc Hybrid Stepper Motor 420oz
  • 1pc Stepper Motor Driver

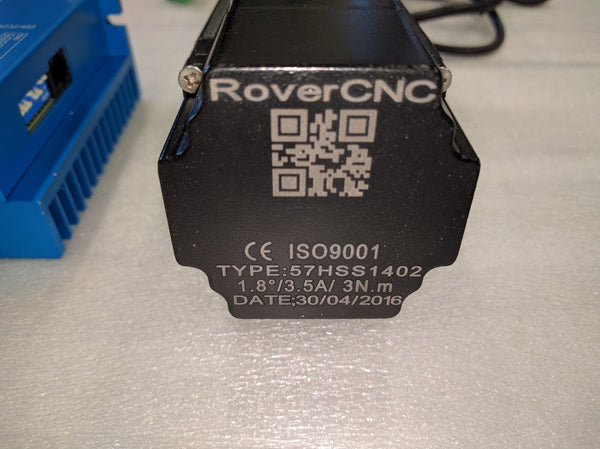

Stepper Motor Specification:
  • Frame: NEMA23
  • Motor Length: 114mm
  • Shaft Length: 25mm
  • Shaft Diameter: 1/4" (6.35mm)
  • Current: 3A
  • Rated Voltage: 2.4V
  • Torque: 428 oz-in
  • No. of Phases: 2
  • Step Angle: 1.8 Degrees (+/- 5%)
  • 2500 Line Encoder

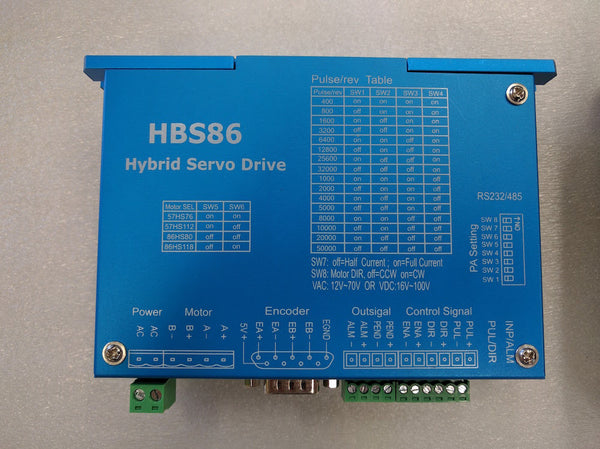

HBS86 Driver Specification:
  • Supply Voltage: From 20V DC to 50V DC
  • Output Current: From 1.0A to 4.5A
  • Self-adjustment technology, full to half current self-adjustment when motors from work to standstill via switching off SW4
  • Pure-sinusoidal current control technology
  • Pulse input frequency up to 300 KHz
  • TTL compatible and optically isolated input
  • Automatic half-current reduction as long as switching off SW4 when motors stop
  • 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR and CW/CCW modes
  • Short-voltage, over-voltage, over-current and short-circuit protection, protect the PC, motors, driver etc from being damaged
