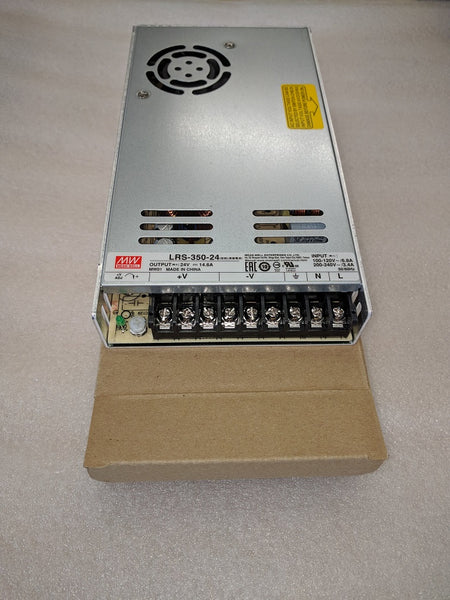

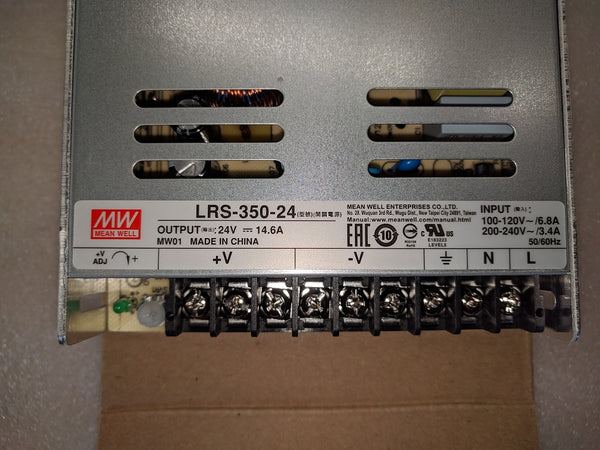

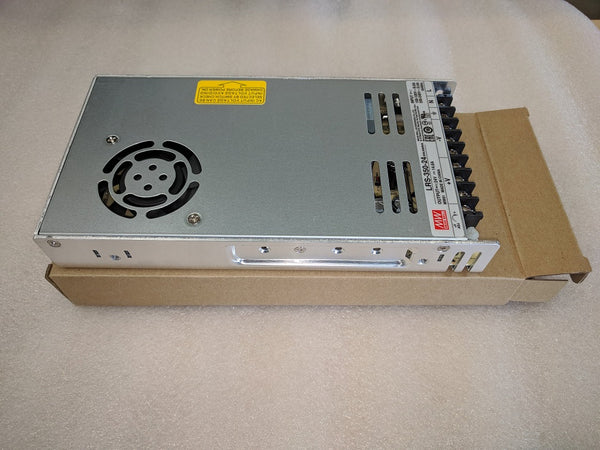

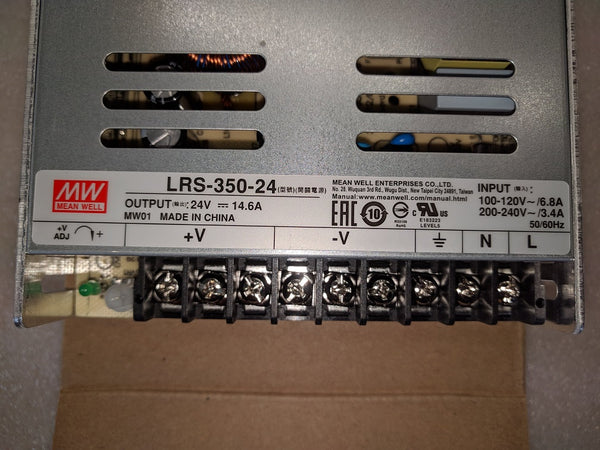

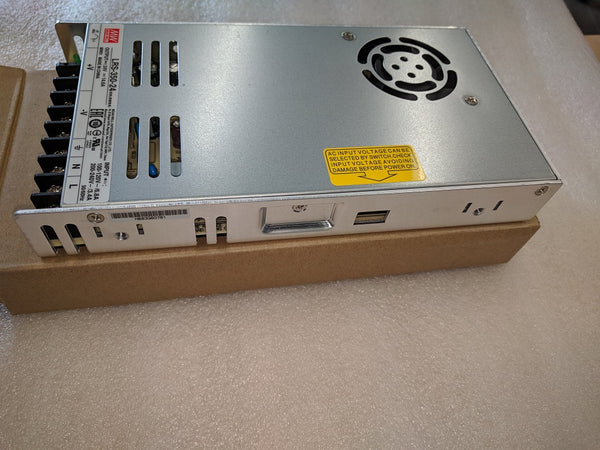

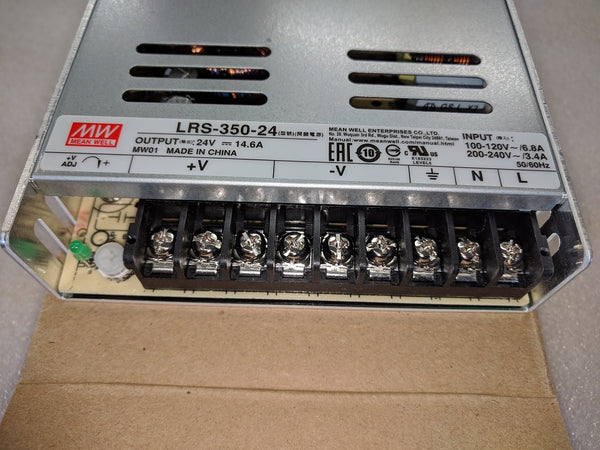

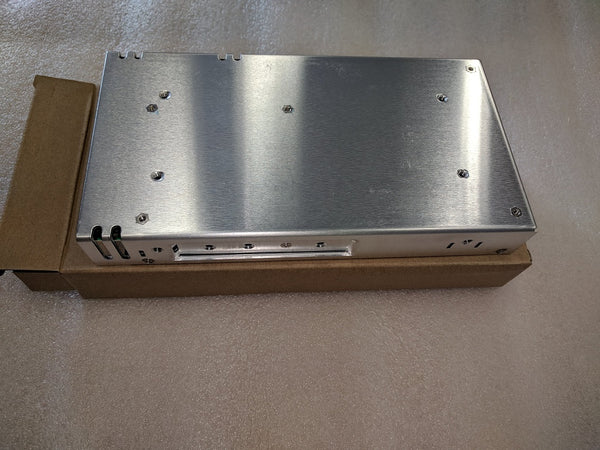

Original Meanwell Power Supply
Input: 110VAC, Output: 24VDC, 14.6A
Input: 110VAC, Output: 24VDC, 14.6A
The LRS-350-24 power supply is perfect to run 3 or 4 NEMA23 motors. LRS-350 series is a 350W thriple-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (selectable by switch), with an output voltage line of 24V.
In addition to the high efficiency up to 89%, the design of metallic mesh case enhances the heat dissipation of LRS-350 that the whole series operates from-25℃ through 70℃ under air convection without a fan. Delivering an extremely l0w no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement. LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1. LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.
LRS-350-24 Specification
- DC Voltage: 24V
- Rated Current: 14.6A
- Current Range: 0 ~ 14.6A
- Rated Power: 350.4W
- Input Voltage (AC): 110/220V
- Frequency Range: 47 ~ 63 Hz
- AC Current: 6.8A/110VAC, 3.4A/220VAC
- Working Temperature: -25 ~
- Length: 215mm
- Width: 115mm
- Height: 30mm
- Weight: 0.76KG
