MASSO Touch G3 CNC Mill/Router Controller - 5-Axis
Fully integrated CNC controller powered by MASSO G3. 15-inch industrial capacitive touch LED screen powered by MASSO G3 controller. Mount accessories or small stepper motor drives inside the unit with a large aluminium back-plate to radiate heat.
Powered by MASSO G3
- Large 15″ LED screen

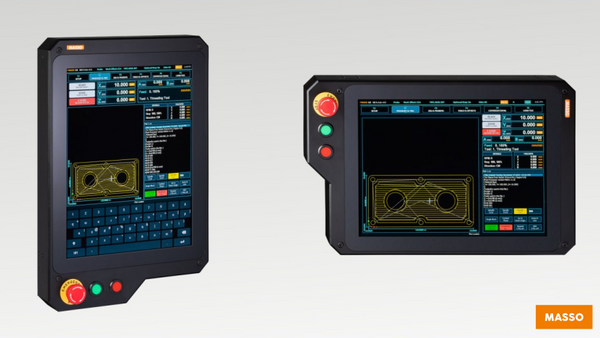

- Switch between vertical or horizontal interface with a single click.
- Vertical interface with full touch keyboard.
- Load g-code files, position work piece and machine parts in a few simple clicks.
- See machining operations in realtime.
- Conversational programming for simple part machining.
- Interactive part probing option.

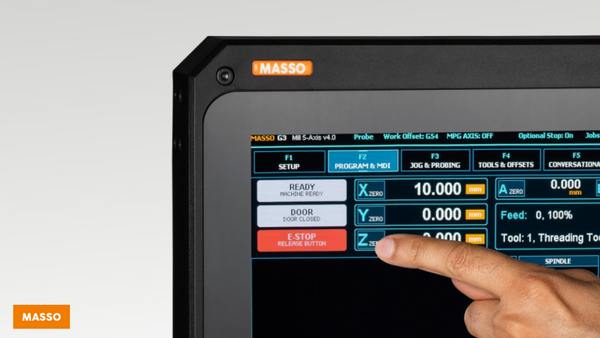

Capacitive touch glass
- Toughened capacitive touch glass.
- Reliable touch operation.
- Easily navigate through screens and control machine operations.
- Wired / wireless mouse and keyboard also supported.
Powered by MASSO G3
- Powered by the latest “PC-less” MASSO G3 controller for fast and reliable machine control.
- Lathe, Mill, Router, Plasma or WaterJet machine control with up to 5-axis control.
- Service access to internal electronics while mounted on the machine.
- Mounting option for accessories or small stepper drives inside the unit.

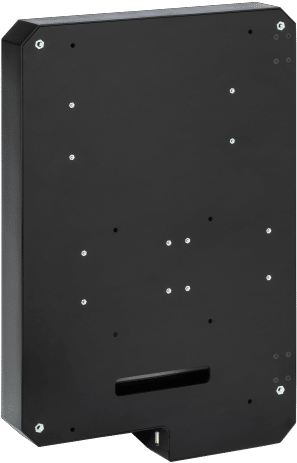

- Aluminium rear plate for easy mounting and can be used as a heat sink.
- Built-in Wi-Fi antenna for PC connectivity via MASSO-Link software.
Easy machine control
- E-Stop, cycle start and cycle stop buttons for easy machine control.
- Easy USB flash drive access to load and run g-code files.
- MPG (manual pulse generator) support.
Integrate with your machine
- Easily mount directly on machine body.
- VESA stand 3.94″ (100mm) compatible.
- Fan-less design for harsh environment operation.
- No need to worry about PC, hard-drive failure or Windows drivers.
- Runs on a single 24VDC power supply.
- Easily manage and run wiring from wiring slot.
