MASSO Relay Module

Regular price $69.00 USD

Shipping calculated at checkout.
MASSO Relay Module
We are the official distributors of the MASSO Controller in Canada/US! The idea for this radical design came from a challenge while building CNC machines. The PC based system was too complex to setup, further there were a lot of hardware and software compatibility issues. The PC based system would periodically crash.

MASSO 6 relay module provides optical isolation to high voltage/current signals from MASSO controller.

  • Multi color LED’s for each relay helps easily troubleshoot issues.
  • Green color LED indicates that a signal is received to switch on the relay and the relay has been switched on.
  • Red color LED indicates that a signal to switch on the relay has been received but the relay has failed and not working.

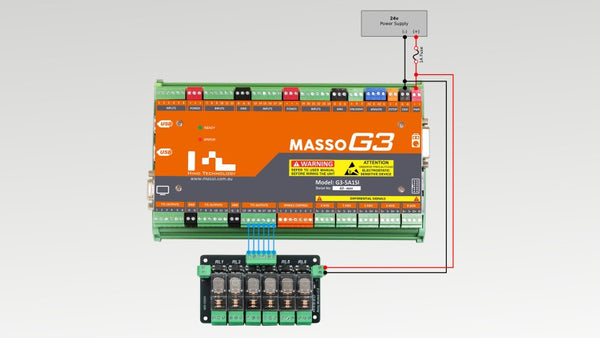

Wiring and Setup instructions: CLICK HERE

  • Optical isolation to protect low voltage components and MASSO.
  • Multi color LED’s status to show input signal status and relay fail status.
  • Works with a single 24VDC power supply.
  • Each relay can be used to control 5 Amp 28VDC or 5 Amp 240VAC load.
  • Easy mounting using M3 screws.
  • WARNING: Connecting the power polarity in reverse will damage the relay module.

You can learn all about the Masso Controller at https://www.youtube.com/channel/UCU1S9ofTFCochJOwrSqJLZw/featured
