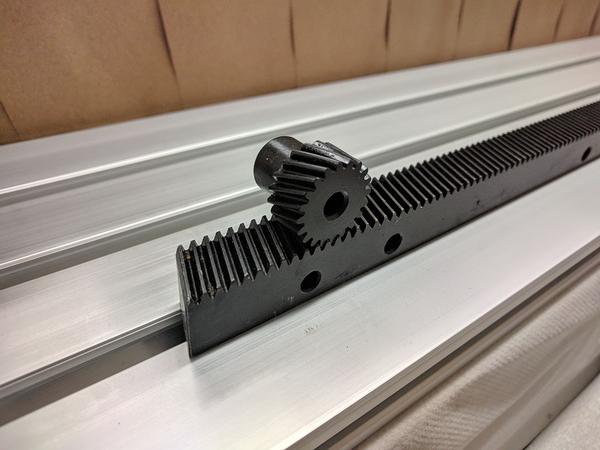

Precision CNC gear pinion for the racks. They are helical tooth made out of ground steel, and pre-drilled for 2 set screws at 90 degrees and hardened. The pinion specs are:
- Bore Hole 8.0mm
- Modula 1.0
- Helical Tooth
- Hardened Ground C45 Steel
- Pre-drilled Bore Hole (Please select the correct bore hole required)
- 20 Degree Pressure Angle
- 2 Set Screws at 90 degree
- OD = 22mm
- Flange OD = 16mm
- Total Width = 24mm
- Teeth Width = 12mm
